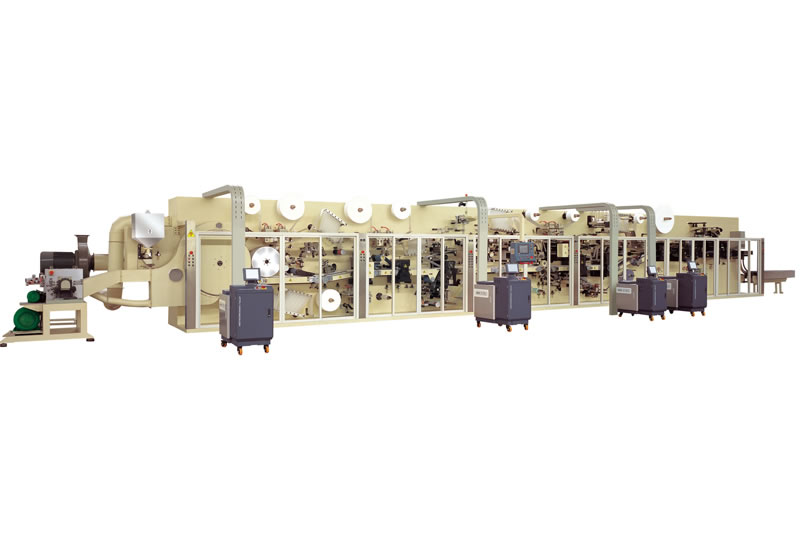

Adult Diaper Pad Machine

Adult Diaper Pad Machine
Adult Diaper Pad Machine

Introduction:

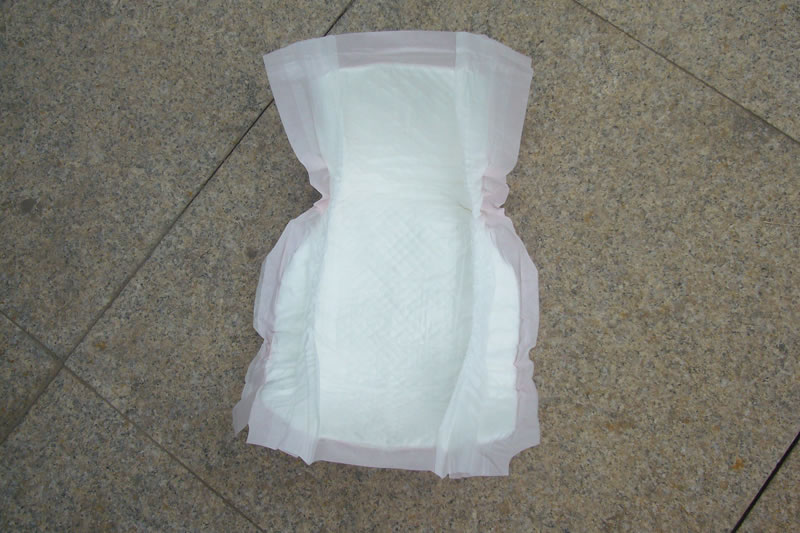

Adult diaper pad machine is used to produce disposable diaper products used by adults. The machine has high accuracy SAP applicating device. It can be adjusted and can run stably. We also make hospital or household diapers for incontinence adults. This machine uses friendly interface. Shanghai Landytop Industry Co.,Ltd. is a professional adult diaper pad machine manufacturer in China. We produce and sell all kinds of diaper pad machines. Our products have gained the CE authenticate and the standard attestation of ISO9001 International Quality System with their high quality. Our adult diaper pad machines boast a good reputation on the market. We can improve our design to meet the demand for more production capacity. We use plywood pallets with plastic film for packaging and container for delivery.

Advantages of Adult Diaper Pad Machine:
1. Web guiders be equipped for high precision.
2. The adult diaper pad machines are automatically controlled by PLC.
3. We have products arrangement output device.
4. Safety device is equipped on the operation panel.
5. Constant tension control and auto splicer are available for raw material.
6. Products have two folding forms: tri-folding and bi-folding.
7. The adult diaper pad machine can be operated easily.
8. Our adult diaper pad machines have a competitive price.
9. The machine wallboard is processed by the large gantry milling machine.

  • Main Configurations of Adult Diaper Pad Machine:

    • 1.Inverter drive, PLC control with touch screen
      2.Raw materials tension control and auto splicing
      3.Quality control system with reject for defective products
      4.Pulp unwinding stand
      5.Cell mill with single in-feeding pulp
      6.Single drums forming for constant core formation
      7.SAP applicator
      8.Tissue wrapping device
      9.Core grid embossing unit
      10.Core cutting unit
      11.Cuff NW vertical cutting unit
      12.Elastic ribbon unwinding unit
      13.Cuff embossing unit
      14.Top sheet side gather unit
      15.ADL splitting and applying device
      16.Contour sealing compacting unit
      17.Anatomic (R) cutting unit
      18.Longitudinal folding device
      19.Final cross cutting unit
      20.Tri-folding device
      21.Reject gate
      22.Ordering output device
      23.Bag type dust collection system
      24.Safety door

  • Main Technical Parameters of Adult Diaper Pad Machine:

    • Production Speed: 300pcs/min
      Max. Production Speed: 350pcs/min
      Required Power Supply: 245Kw (glue applicator and air compressor excluded)
      Power: 380V, 50Hz, 3 Phases
      Compressed Air: 0.6-0.8Mpa, 2.5 m³/min
      Total Weight: 38 T
      Dimensions: (m) L×W×H: 25×10×4.5 (for reference)

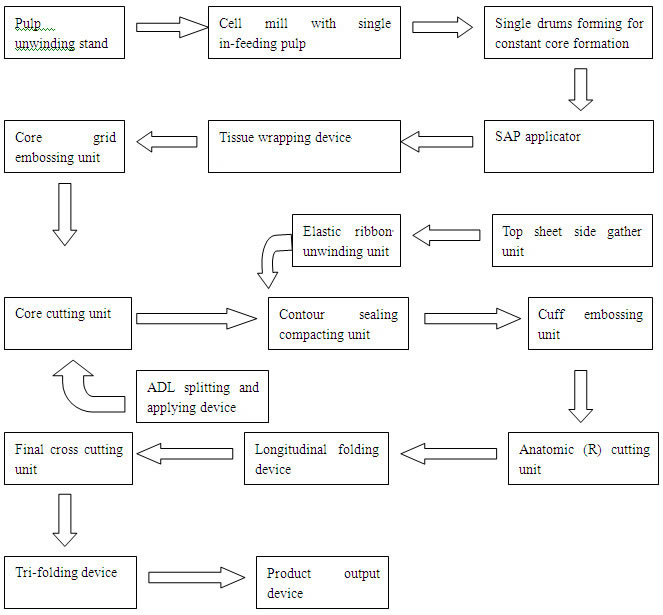

  • Flow Chart of Adult Diaper Pad Production Line:

Shanghai Landytop Industry Co.,Ltd. is a professional manufacturer of adult diaper pad machines in China. In addition to these products, we also provide sanitary napkin machine, baby diaper machinery, under pad machinery, maternity napkin production line, breast pad machine, etc. Our products have gained the CE authenticate and the standard attestation of ISO9001 International Quality System with their high quality. We follow strictly the standards for machinery industry formulated by the state. Our sales cover a wide range all over the world.
