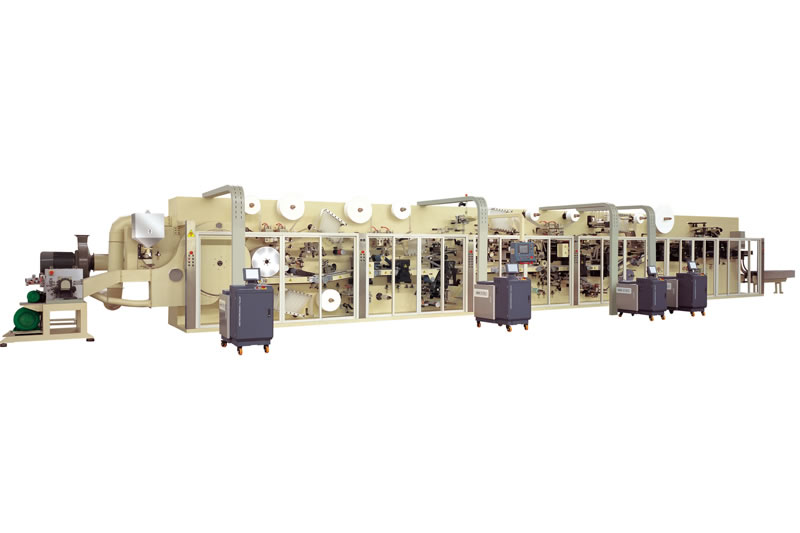

Incontinence Pad Machine

Introduction:

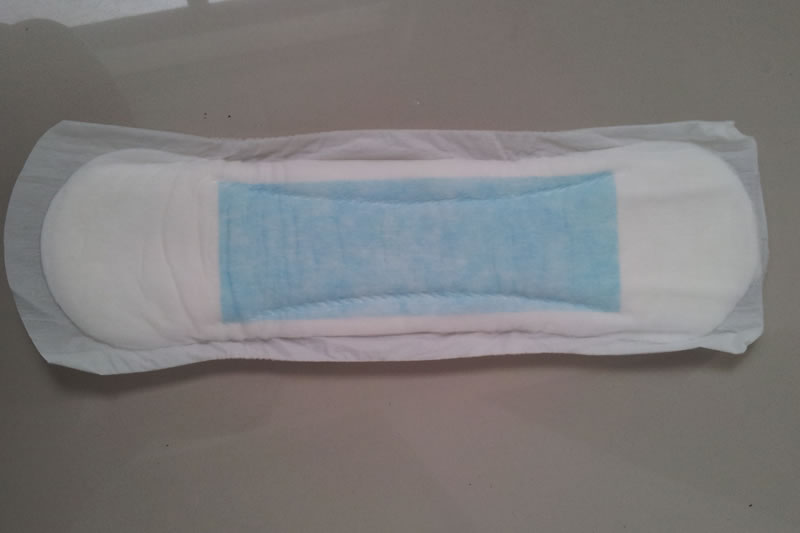

The incontinence pad machine makes disposable products applied to mild or moderate incontinence patients. An incontinence pad can be specifically designed for either a man or woman, as well as for either day or night use. No matter what type of protection you choose, our company has a broad range of incontinence pad supplies to suit your individual needs and preferences. Landytop Industry Co.,Ltd is a trusted incontinence pad machine provider as well as many other products. We offer the selection you need with the prices you're looking for. We use plywood pallets with plastic film for packaging and container for delivery.

Advantages of Incontinence Pad Machine:
1. There are a large selection of incontinence pad products and other supplies.
2. We are a trusted medical equipment supplier.
3. High precision and stably machine.
4. Full automatic unwinding modules are allowed in line in order to drive and to control the raw material tension.Web guiders be equipped for high precision.
5. The machine wallboard is processed by the large gantry milling machine.

Main Configurations of Incontinence Pad Machines:
- 1. Pulp unwinding stand
  2. Cell mill with single in-feeding pulp
  3. Single Drums forming for constant core formation
  4. SAP applicator
  5. Dredge layer cutting device
  6. Non-dust cutting device
  7. Tissue wrapping device
  8. Core compacting unit
  9. Pressure air deflector
  10. Elastic ribbon unwinding device
  11. 2 ends embossing unit
  12. Back release paper unwinding and splitting device
  13. Final cross cutting unit
  14. Product folding device
  15. Film wrapping mechanism
  16. Thermo-sealing and cutting unit
  17. Reject gate
  18. Bag type dust collection system
  19. Product output device
Main Technical Parameters of Incontinence Pad Machine:
- Designed Production Speed: 180m/min
  Stable Production Speed: 150m/min
  Ratio of Conformity: ≥80%
  Required Power Supply: around 260 Kw (glue applicator and air compressor excluded)
  Power: 380V, 50Hz, 3 Phases
  Compressed Air: 0.6-0.8Mpa, 2.0 m³/min
  Dimensions: (m) L×W×H: 23×6.0×2.5 (for reference)

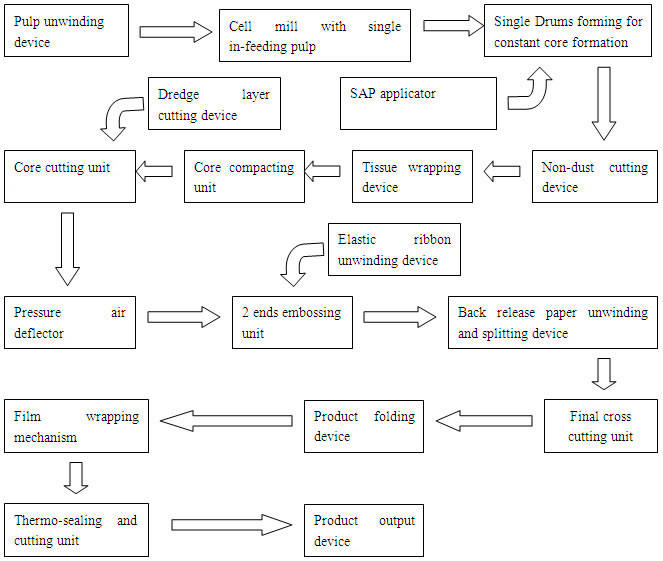

Flow Chart of Incontinence Pad Machine:

Shanghai Landytop Industry Co.,Ltd. is a professional incontinence pad machines manufacturer in China. In addition to these products, we also provide sanitary napkin machine, baby diaper machinery, under pad machinery, maternity napkin production line, etc. Our products have gained the CE authenticate and the standard attestation of ISO9001 International Quality System with their high quality. We follow strictly the standards for machinery industry formulated by the state. Our sales cover a wide range all over the world.
